Deployment and Activation

1. Get the installation method

   • Click the button in the picture to get the installation method

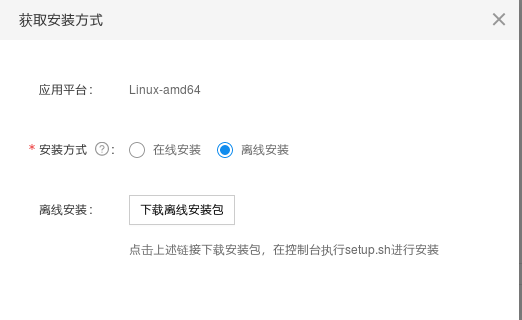

   • You can select online installation (not supported for Darwin system platform at present) or offline installation.

2. Deploy

   • For online installation, copy the command in the box and execute it in the system console. After the execution, proceed to step 4.
   • For offline installation, copy the downloaded zip installation package to the edge core host, decompress it, and go to step 3.

3. Execute a script

   • Execute the setup.sh script in the installation package. baetyl is installed in the system’s /usr/local directory, and it mainly contains bin, etc, and var three directories.

4. Create a file to store fingerprints in the specified directory

   • Create a file according to the name of {ID save file} entered during Create a model. Save the device registration ID in the cloud to this file.
   • Create this directory under the /usr/local/ directory according to the name of {host directory} entered during Create a model. The full path is /usr/local/{host directory}. Copy {ID save file} here.

5. Activation

   • Execute the command systemctl start baetyl, the device is automatically activated, and baetyl supports powerboot.
   • You can view logs related to the master program during the activation process in var/log/baetyl/baetyl.log and activation logs in var/db/baetyl/activation-log/service.log

6. View the status

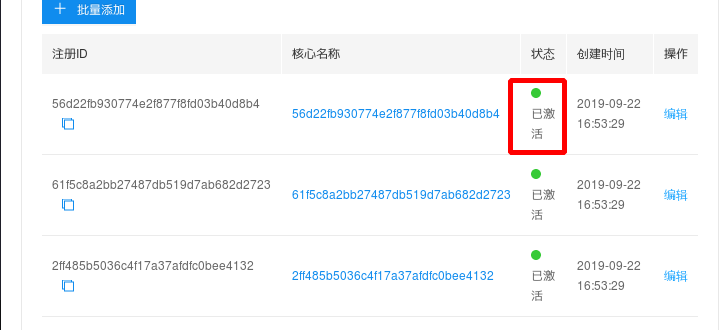

   • After it is activated successfully, you can see [Activated] in the status of the corresponding registration ID on the model registration details page in the cloud.
   • You can search and view the core details on the core list page according to the core name.

Note: The above steps 1 to 5 are also the process to pre-install baetyl.

Example for Operation

1. Create a model/batch number

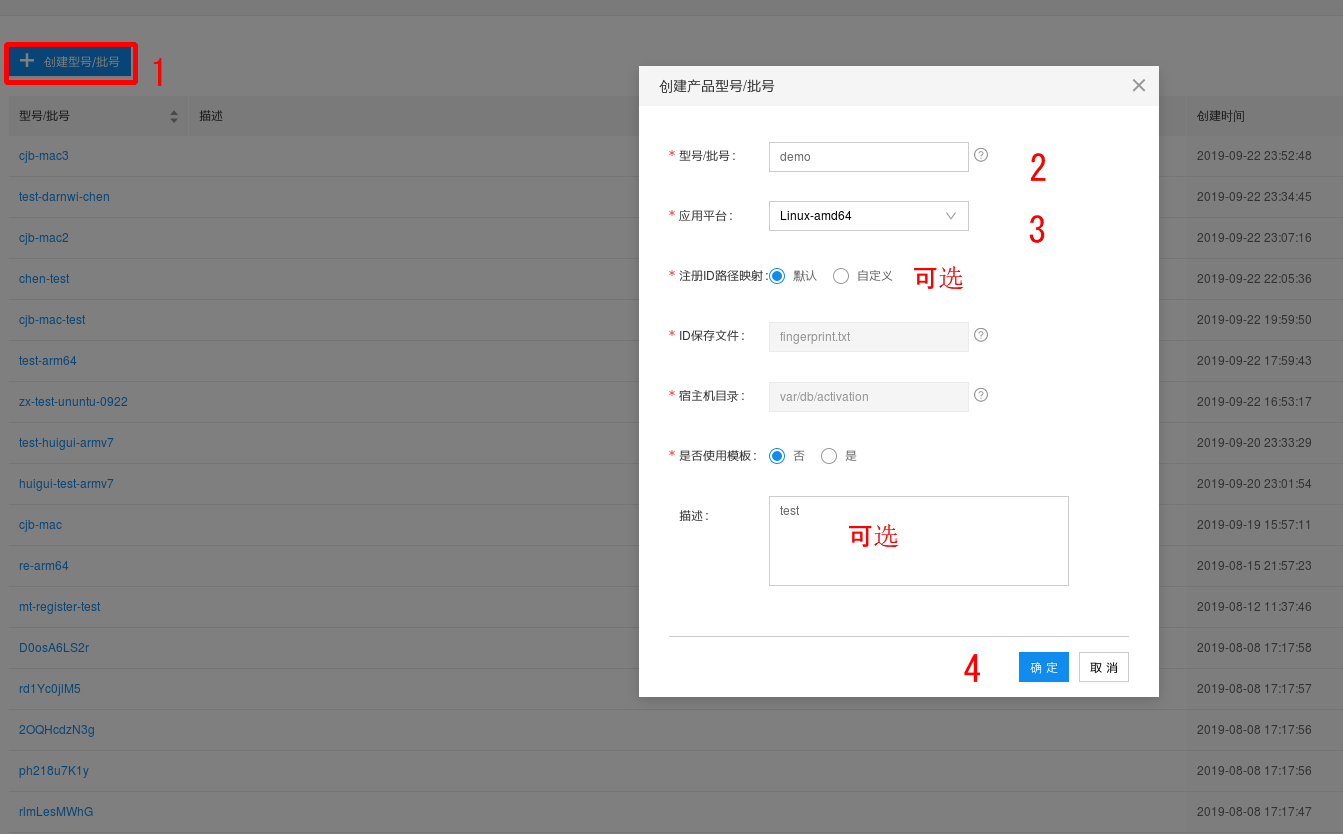

   • Click Create a model/batch.
   • Fill in Model/Batch, and select Application platform.
   • Click to enter the details page to continue editing.

2. Add a registration record

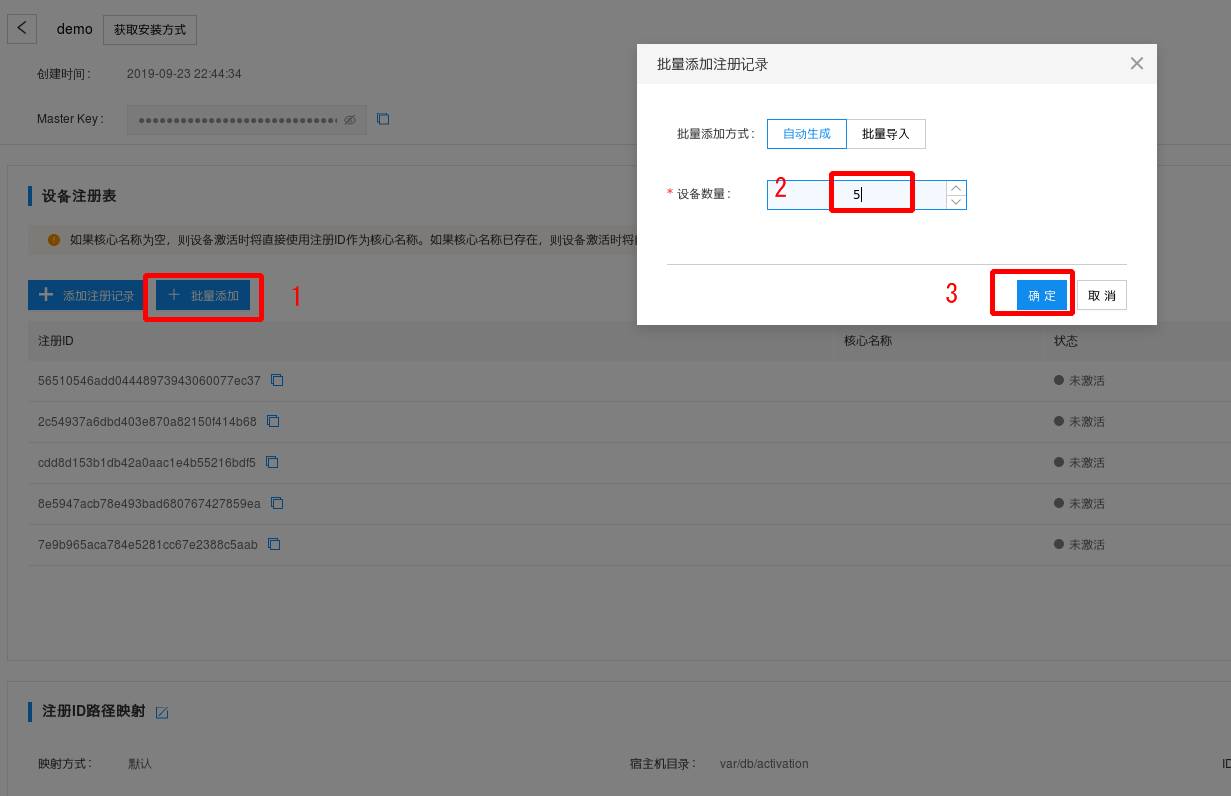

   • In this demo, click Add in baches and Auto generated.

3. .Get the installation method

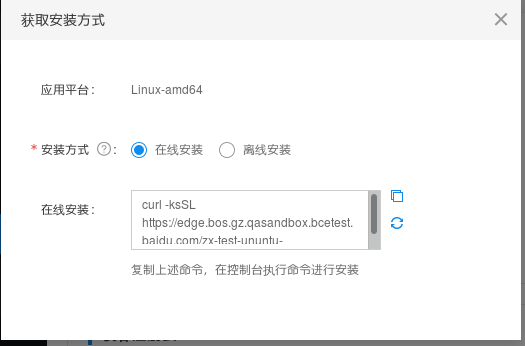

   • Click the button in the picture to get the installation method. Here, online installation is selected.

4. Deploy

   • Execute the installation command

5. Create a file to store fingerprints

   • Create a file according to the name entered in Host directory and ID save file during the creation process, and write a Registration ID to be activated in the file.

6. Activation

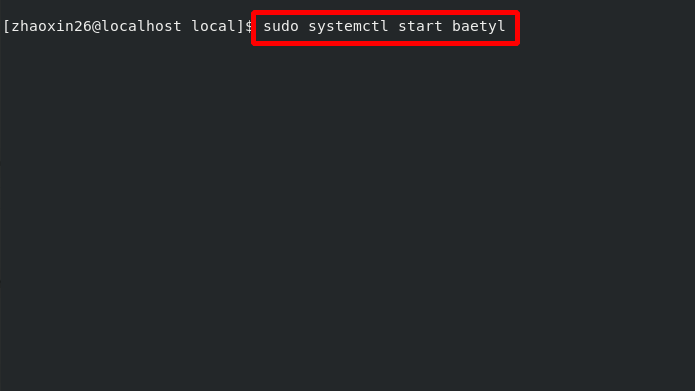

   • Start the program systemctl start baetyl, and the device is automatically activated.
   • You can view logs related to the master program during the activation process in var/log/baetyl/baetyl.log and activation logs in var/db/baetyl/activation-log/service.log

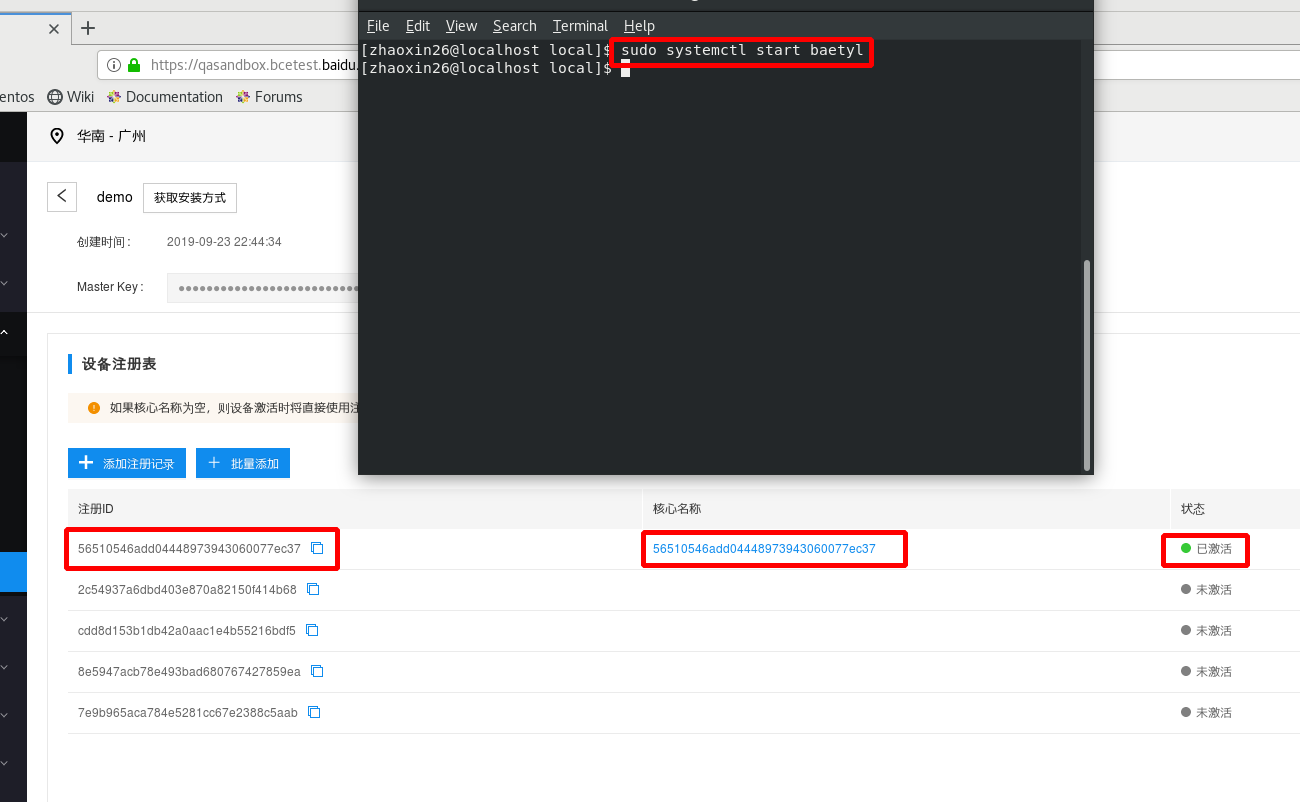

7. View the status

   • After it is activated successfully, you can see [Activated] in the status of the corresponding registration ID on the model registration details page in the cloud.
   • You can search and view the core details on the core list page according to the core name.
